SPL® Locking Screws

The first truly dynamic plate and screw technology: a system that changes with body during the course of fracture healing.

THE PROBLEM: LOCKED PLATING MAY BE CONTRIBUTING TO FRACTURE HEALING COMPLICATIONS

Studies examining locked plating indicate reasons for concern due to the reported rates of non-unions and delayed unions. Recently, these healing difficulties have been reported in up to 23% of distal femur, 15% of distal tibia and 6% of proximal humerus fractures. [1, 2, 3]

Previous studies have shown that the high overall rigidity of locked plating may contribute to healing difficulties by inhibiting interfragmentary motion. [4] Under compression, rigid locking plates asymmetrically bend, limiting cortical motion. This rigidity may produce stress shielding across the fracture site, contributing to non-unions, which may result in implant fatigue and failure under repetitive loading. [4, 5]

Illustration depicting how the rigidity of locked plating inhibits sufficient interfragmentary motion.



THE SOLUTION: STABILIZ POLYMER LOCKING (SPL) TECHNOLOGY

SPL locking screws function in a manner similar to conventional locking screws at implantation but reduce construct stiffness over time, promoting interfragmentary motion. Delayed dynamization has shown enhanced healing when compared to constantly flexible fixation or early dynamization in animal models. [6, 7]

Clinically, favorable outcomes have been reported with dynamization of intramedullary nails between 3-5 months. [8, 9] In the presence of delayed unions, dynamization initiated between months 3 to 6 has been associated with higher bone union success rates. [10]



TECHNOLOGY

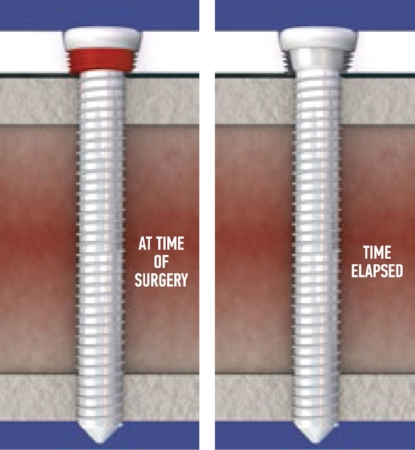

SPL locking screws are stainless steel with a PLGA locking mechanism. The system is implanted using conventional plating techniques, including bi-cortical screw fixation. The polymer locking mechanism resorbs over four to six months, while the screw head remains in contact with the plate. Under load, the screw moves relative to the plate to create interfragmentary motion at the fracture site.

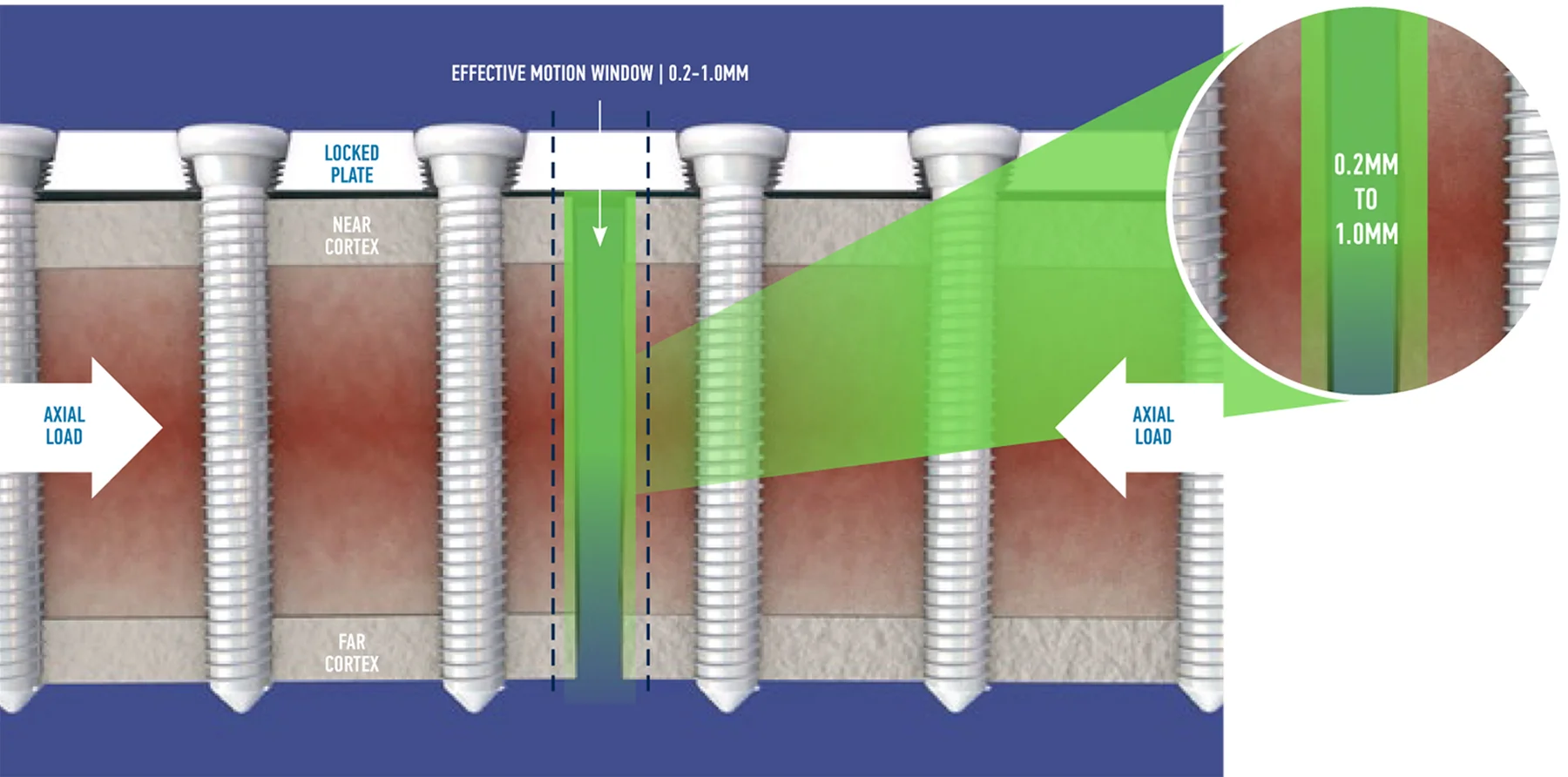

Illustration depicting how, with time, SPL Locking Screws promote interfragmentary motion at both near and far bone cortices.

REDUCED STIFFNESS

Axial stiffness decreased up to 57% after resorption of the SPL locking mechanism. Decreases in fixation stiffness from 29-86% have improved rates of fracture healing and remodeling in animal models. [4, 6, 13]


Indications: The Stabiliz Fixation System with SPL Locking Screw is intended for fixation of fractures, osteotomies and nonunions of the humerus, radius, ulna, distal tibia, and fibula.



SPL® Locking Screws are provided sterile

SPL® Locking Screw Materials: 316L Stainless Steel / PLGA

SPL® Locking Screw Sizes: ø3.5mm x 10 - 50mm (in 2mm increments), 55mm, 60mm




Documents


 Small Fragment Product Catalog

Small Fragment Product Catalog


 SPL Technical Information

SPL Technical Information


 SPL.35 Instructions for Use

SPL.35 Instructions for Use




  1. HENDERSON C, ET AL. Healing Complications Are Common After Locked Plating for Distal Femur Fractures. Clin Orthop Relat Res. (2011) 469:1757–1765

  2. KHALSA A, ET AL. Distal tibia fractures: locked or non-locked plating? A systematic review of outcomes. Acta Orthopaedica. 2014; 85 (3): 299–304

  3. CLAVERT P, ET AL. Pitfalls and complications with locking plate for proximal humerus fracture. J Shoulder Elbow Surg. 2010 Jun;19(4):489-494

  4. BOTTLANG M, ET AL. Effects of construct stiffness on healing of fractures stabilized with locking plates. J Bone Joint Surg Am. 2010;92 Suppl 2:12-22

  5. STRAUSS EJ, ET AL. The current status of locked plating: The good, the bad, and the ugly. J Ortho Trauma. 2008;22:479-486

  6. CLAES, ET AL. Late dynamization by reduced fixation stiffness enhances fracture healing in a rat femoral osteotomy model J Orthop Trauma. 2011;25:169-174

  7. WILLIE, ET AL. Temporal variation in fixation stiffness affects healing by differential cartilage formation in a rat osteotomy model. Clin Orthop Relat Res. 2011;469:3094-3101

  8. GROSSE A, ET AL. Treatment of fragments, loss of bony substance and pseudarthrosis of femur and tibia using screw fixation (40 cases). Rev Chir Orthop Reparatrice Appar Mot. 1978;64S:33-35

  9. RIQUELME, ET AL. Treatment of the femoral and tibial fractures with Grosse and Kempf locking nails. Clin Orthop Relat Res. 1992:86-89

  10. HUANG KC, ET AL. Evaluation of methods and timing in nail dynamisation for treating delayed healing femoral shaft fractures. Injury. 2012;43:1747-1752

  11. ROBERTS, ET AL. Biomechanical evaluation of locking plate radial shaft fixation: Unicortical locking fixation versus mixed bicortical and unicortical fixation in a sawbone model. J Hand Surg Am. 2007;32:971-975

  12. FULKERSON, ET AL. Fixation of diaphyseal fractures with a segmental defect: A biomechanical comparison of locked and conventional plating techniques. J Trauma. 2006;60:830-835

  13. GOODSHIP, ET AL. The influence of induced micromovement upon the healing of experimental tibial fractures. J Bone Joint Surg Br. 1985;67:650-655
